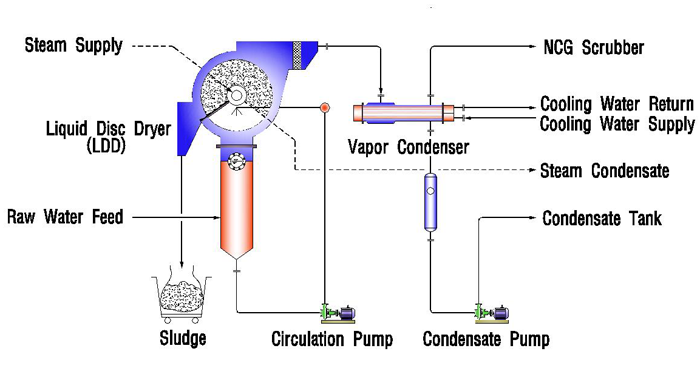

Smart Liquid Disc Drying System

Smart Liquid Disc Drying System

Basic Type
  • Evaporation and drying treatment of high-concentration wastewater
  • Compact design minimizes installation space
  • Low capital expenditure (CAPEX)
Type Capacity(kg/hr) Utility consumption Size
(mW x mD x mH)
Steam(kg/hr) Power(kwh) Industrial Water(kg/hr)
Basic Type (KB type) 100 109 - 114 5 - 6 129 - 136 2.0 x 1.8 x 2.0
300 327 - 343 8 - 9 388 - 407 2.1 x 1.8 x 2.5
500 545 - 572 10 - 12 646 - 679 2.5 x 2.0 x 3.2
800 872 - 916 17 - 19 1,034 – 1,086 2.8 x 2.2 x 3.5
1,000 1,090 - 1,150  21 - 24 1,293 - 1,357 3.0 x 2.6 x 3.5
