Smart Liquid Disc Drying System

Smart Liquid Disc Drying System

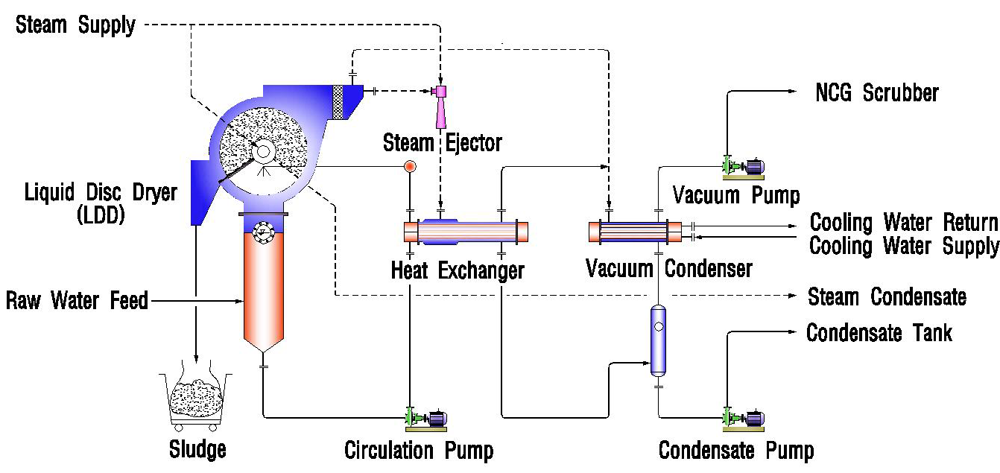

TVR Type
  • Waste heat recovery using a steam ejector (recovery rate: 30-40%)
  • Low risk of failure due to lack of drive unit in waste heat recovery device
  • Lower capital expenditure (CAPEX) compared to MVR
Type Capacity(kg/hr) Utility consumption Size
(mW x mD x mH)
Steam(kg/hr) Power(kwh) Industrial Water(kg/hr)
TVR Type (KT type) 300 209 - 219 8 - 9 219 - 230 2.1 x 2.0 x 3.0
500 348 - 366 13 - 15 366 - 384 2.5 x 2.5 x 3.2
1,000 697 - 731 27 - 30 731 - 768 2.8 x 3.0 x 3.8
2,000 1,394 - 1,463 54 - 56 1,462 - 1,535 3.8 x 3.6 x 4.2
3,000 2,091 - 2,194 81 - 85 2,193 - 2,303 4.1 x 3.8 x 4.5
