Smart Liquid Disc Drying System

Smart Liquid Disc Drying System

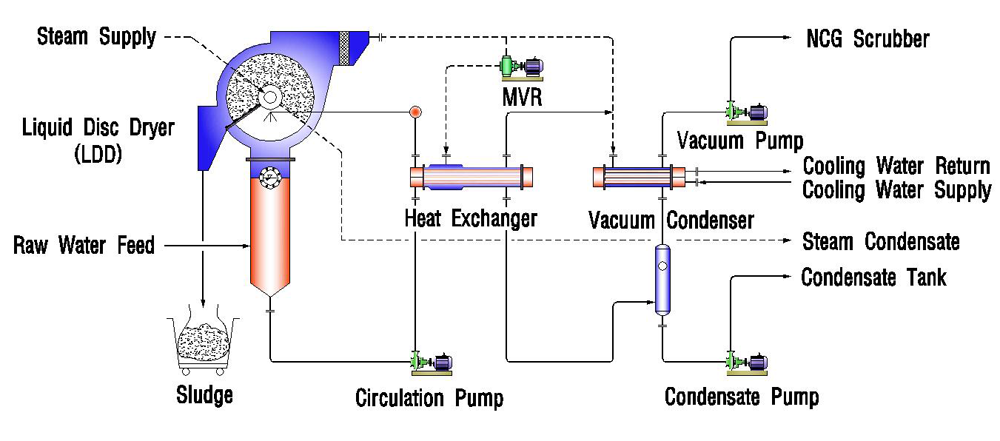

MVR Type
  • Waste heat recovery using steam compressor (MVR) (recovery rate: 75-85%)
  • High waste heat recovery rate significantly reduces operating expenses (OPEX).
  • Relatively high capital expenditure (CAPEX) (expensive MVR equipment required)
Type Capacity(kg/hr) Utility consumption Size
(mW x mD x mH)
Steam(kg/hr) Power(kwh) Industrial Water(kg/hr)
MVR Type (KMR type) 300 54 - 57 25 - 30 53 - 56 2.1 x 2.3 x 3.0
500 90 - 94 42 - 48 89 - 94 2.5 x 2.8 x 3.4
1,000 180 - 189 55 - 78 178 - 187 2.8 x 3.2 x 3.8
MVR Type (KMF type) 2,000 360 - 378 90 - 115 357 - 374 3.8 x 4.1 x 4.2
3,000 539 - 566 135 - 186 535 - 562 6.8 x 4.3 x 4.5
5,000 899 - 944 220 - 308 892 - 936 7.1 x 4.8 x 5.5
10,000 1,798 – 1,888 450 - 611 1,783 – 1,872 7.5 x 5.3 x 6.3
20,000 3,595 – 3,775 920 – 1,216 3,566 – 3,745 8.2 x 8.3 x 6.8
